Due to inadequate installation of a roof extension 30+ years ago, the rear edge of the rear floor had decomposed enough so that the wall and roof it supports were instead supporting it (hanging)
|
|
Pried the plywood floor section up at the seam
03/13/02
|

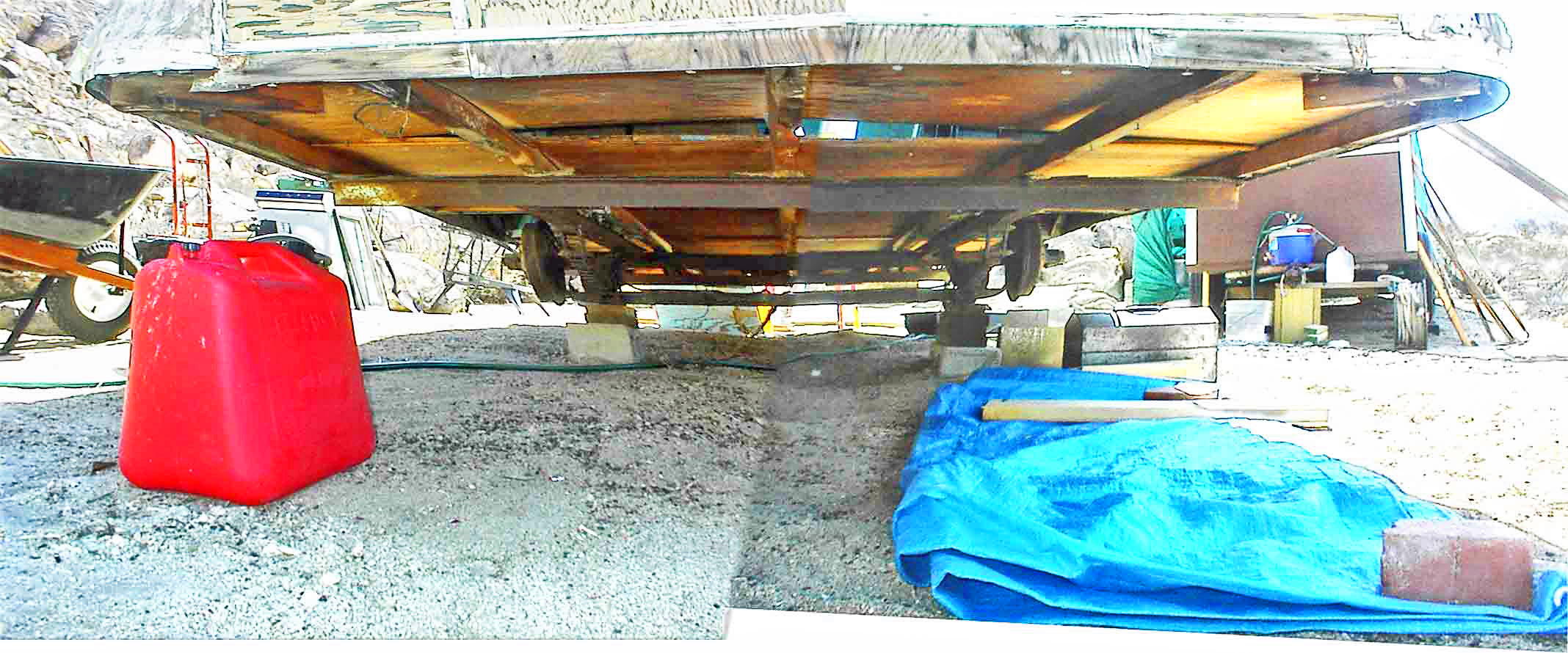

Same view, but reversed and underneath
(The red can has nothing to do with this)
|
Out & in. Punched this hole as I backed into a rock 30+ years ago. Time to fix it
|
|
|
03/13/02
All taken 03/15/02(+) unless OW indicated
|
11/21/01 +/- 03/16/02
|
|
Split it down the middle for 'easy' removal.
This little pry bar wouldn't budge it
|
This one did
|
The square black hole is where I removed a small panel to see what was behind it
|
|
|
|
|
|
Pushed the sagging rear back up to make space for the new floor to slide underneath it
|
Added a 2x4 to tie the 5 floor joists together
|
For the record, the old floor (and the new) measured about 7' 4” x 3' 5 3/8”
|
|
|
|
|
|
Using the old floor as a template for the new
|
The new
|

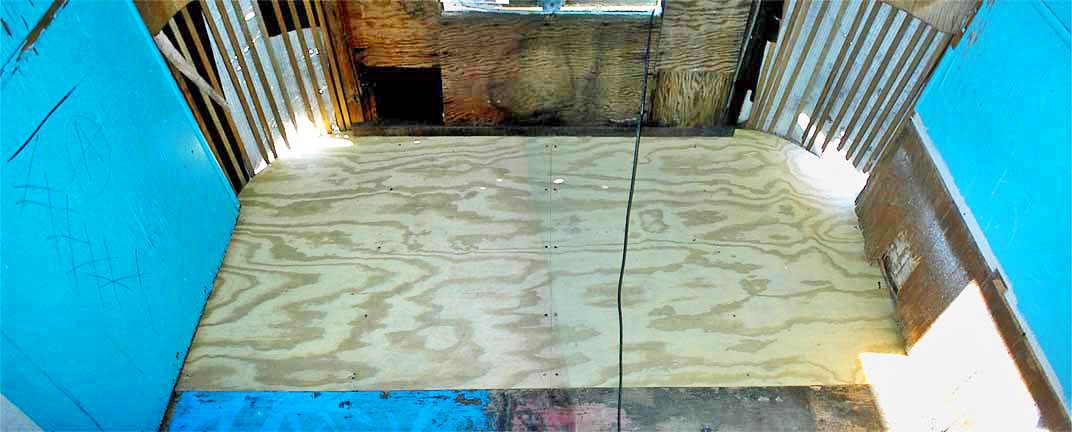

Done. (The line is a power cord. The bright square is the sun's reflection; not a hole)
|
|
|
|
At this point, I broke away and began work on the exterior
|
|
All photos below taken during the mid-2 weeks in May 2002 unless otherwise indicated
|
|
When the exterior was basically done,
I scraped the rest of the floor
|
Where the seams were uneven, glued and screwed scrap plywood beneath
|
Holes were doweled. Loose top ply, cracks and seams were glued. All were wood filled
|
|
|
|
|
|
|
Pressed glue into the seams
|
Wood-filled seams, screw and nail heads
|
Sanded everything
|
|
|
|
|
|
Varnished almost everything - concerned about running out. But backing out the
door I still had plenty left -- Next trip
|
Reattached the partition in the
morning and moved the bed in
|
Let's get this going ...
Home; sweet home!
|
|
|
|
|
|
|
Even the sliding door slot got cleaned and varnished (later), though full of paint dust
|
Top (right rear) and bottom (left rear), 'Great Stuff' foam in all corners expands into gaps. Keeps bugs out, heat in
|
Gap around wheel wells, wide enough for bugs and spiders, is filled with 'Liquid Nails'
|
|
|
|
|
|
These kept me healthy. (Found my old Marine emblem in the debris. Eileen stuck it into the hat)
|
|
|
Still to do:
Drill for plumbing and electric
Paint the floor, probably some shade of brown or beige
Apply a bead of silicone sealant into the gap between the wall and floor
Add baseboard molding all the way around
|
